SYDUAN

BLPA Series Open Fixed Bed Pneumatic Power Press | 25T Stamping Press Machine

Pneumatic Power Press

SYDUAN

Model BLPA-25T

BLPA Series Open Fixed Bed Pneumatic Power Press

This page displays full specifications and features of the BLPA-25T open fixed pneumatic stamping press. Buyers can take this model as a reference to check configurations of other tonnage models within the BLPA product line.

Contact us for Quote

Detailed Display

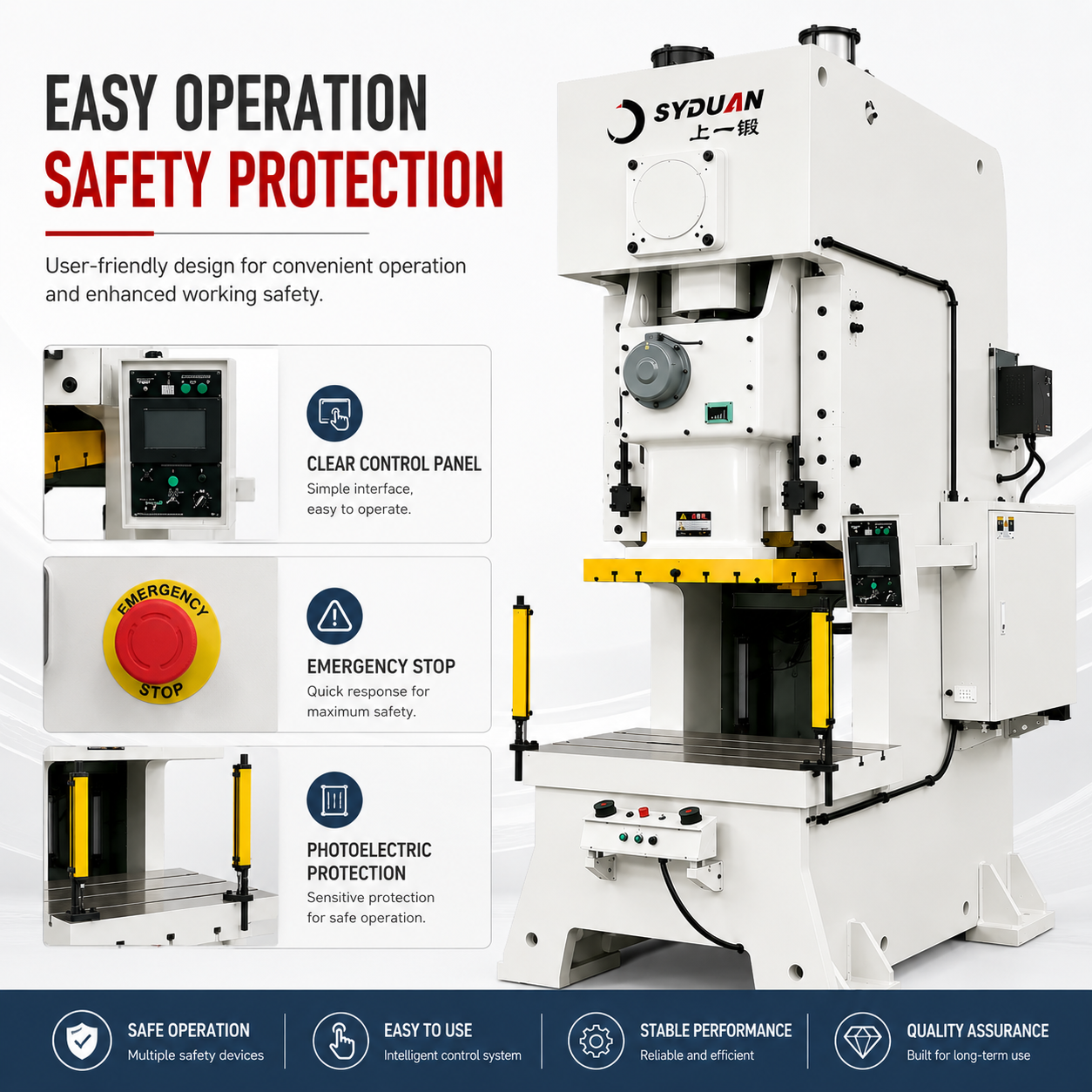

The 25T pneumatic press features easy operation and multi-layer safety designs including centralized control, emergency stop and photoelectric protection, fully meeting factory safety requirements.

This 25-ton pneumatic power press is equipped with a centralized control panel for intuitive parameter setting, a prominent emergency stop button for instant hazard shutdown, and photoelectric safety barriers to block accidental hand entry into the working area. It complies with international industrial safety norms, realizing easy daily operation and all-round operator protection for long-term stamping production.

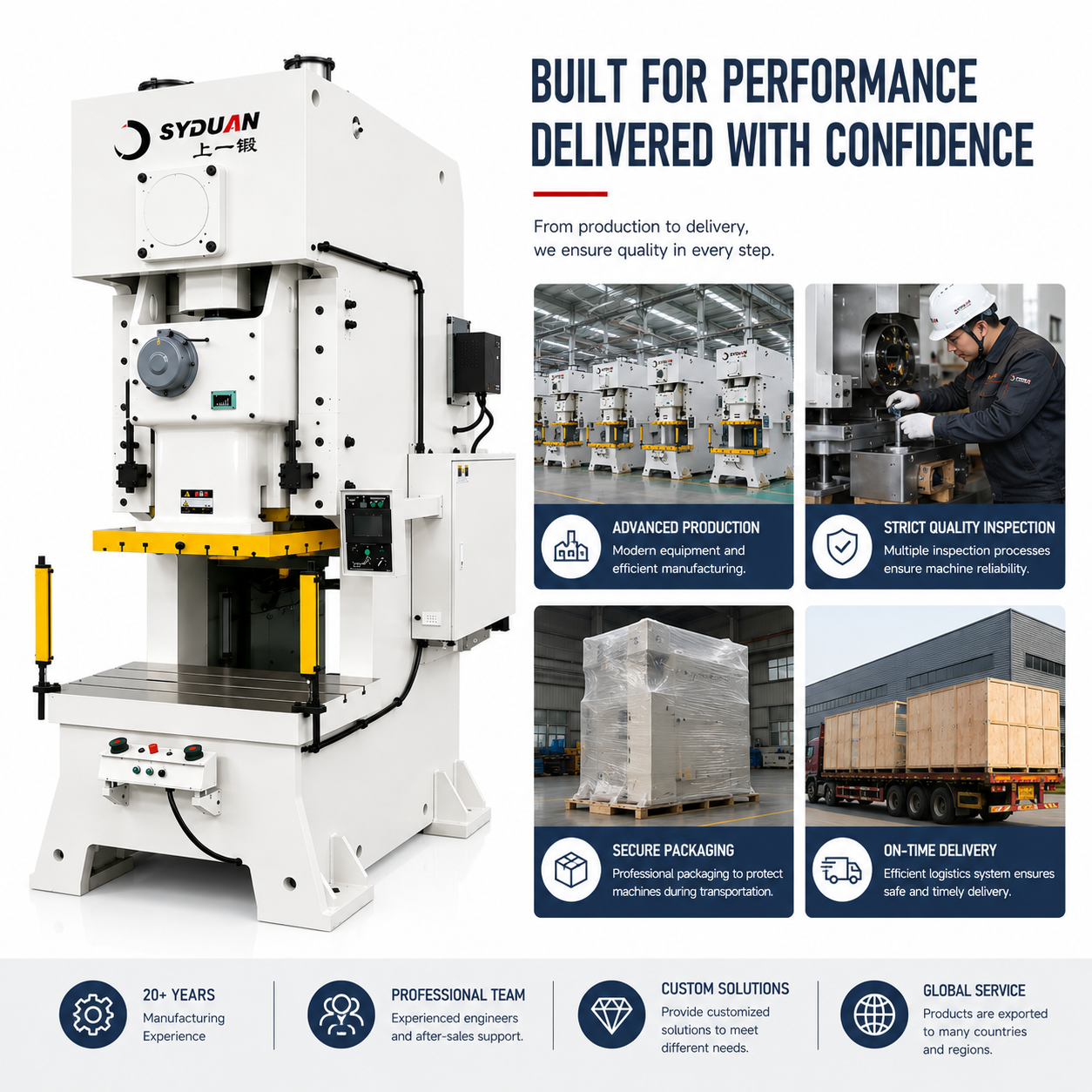

Built with robust craftsmanship and strict quality inspection, our press supports standardized export delivery and complete global after-sales service to secure your production investment.

Our BLPA series stamping press undergoes strict factory testing before shipment to guarantee consistent machining precision and long service life. We adopt standard export packaging and reliable logistics solutions for safe worldwide delivery, and provide professional after-sales guidance, spare parts supply and global technical support for every client.

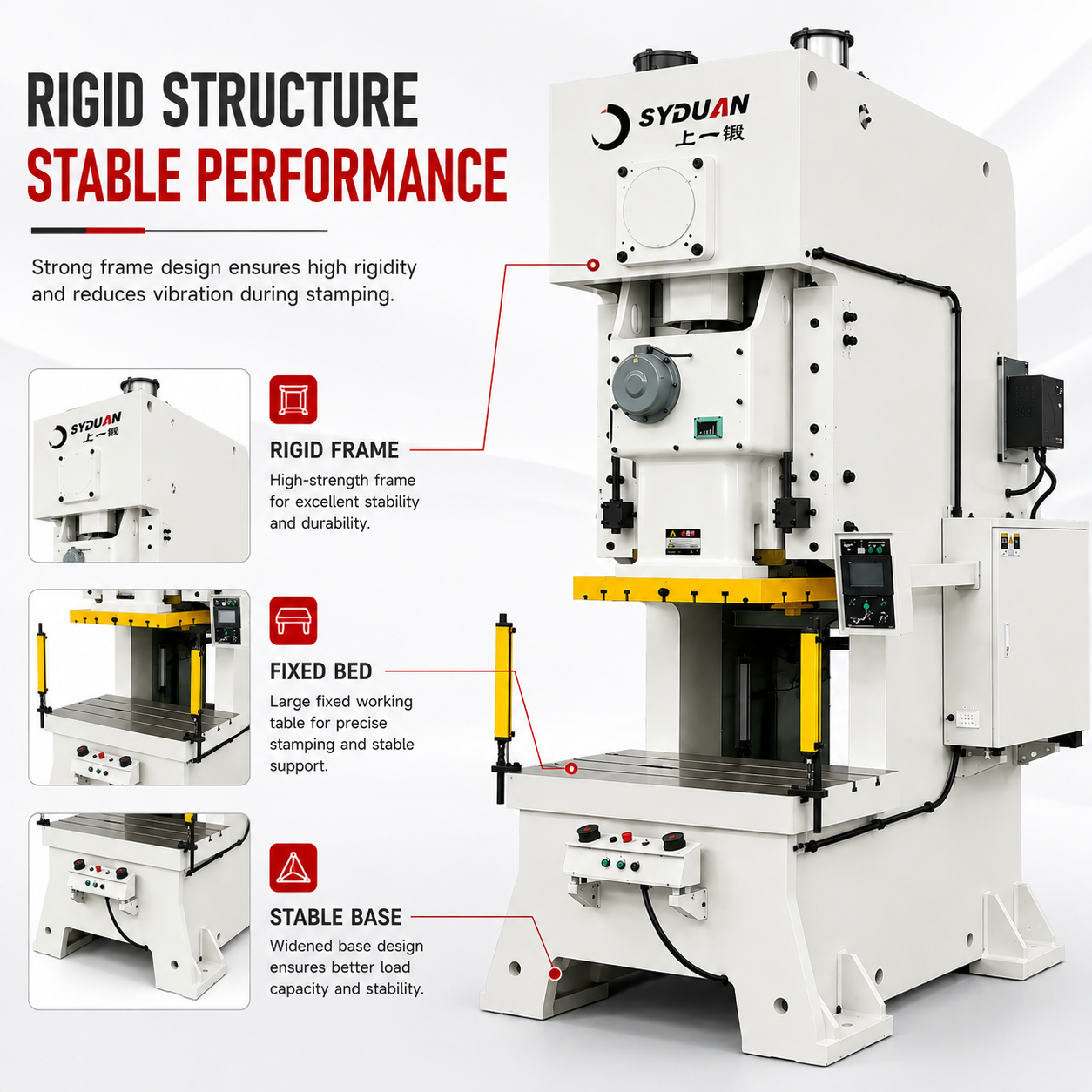

BLPA-25T pneumatic press adopts integrated rigid frame, fixed bed and stable base structure, effectively suppressing vibration and maintaining long-term stamping precision.

The high-rigidity integral frame undergoes strict stress relief treatment to minimize deformation under heavy load. The fixed bed and heavy-duty base greatly reduce running vibration, ensuring stable performance and consistent machining accuracy even in long-hour continuous production.

This 25T stamping machine is widely applicable to punching, blanking, bending, forming of metal workpieces across multiple industries.

It delivers high-precision processing results for hardware, electrical accessories, auto parts and other metal products. With versatile applicability, reliable quality and improved production efficiency, it is an ideal choice for mass metal stamping workshops.

Technical Specifications

Technical parameters
Nominal Force 25 Ton(250 kN)
Slide Stroke 65 mm
Max Die Height 270 mm
Die Height Adjustment 60 mm
Strokes Per Minute 45 times/min
Worktable Size (L×W) 700 × 440 mm
Table T-slot 18 mm
Slide Bottom Size 360 × 260 mm
Throat Depth 220 mm
(L×W×H) (mm) 1350×900×2100 mm
Main Motor Power 3 kW
Net Weight 1750 kg
