45 Ton Industrial Pneumatic Punch Press | BLPA Series Open Fixed Table Stamping Machine
SYDUAN
BLPA Series Open Fixed Table Pneumatic Punch Press
This page shows full parameters and introduction of BLPA-45 open fixed table pneumatic punch press. This industrial punching equipment is used for sheet metal stamping, blanking and forming. You can refer to this model to view all specifications of other BLPA series models.

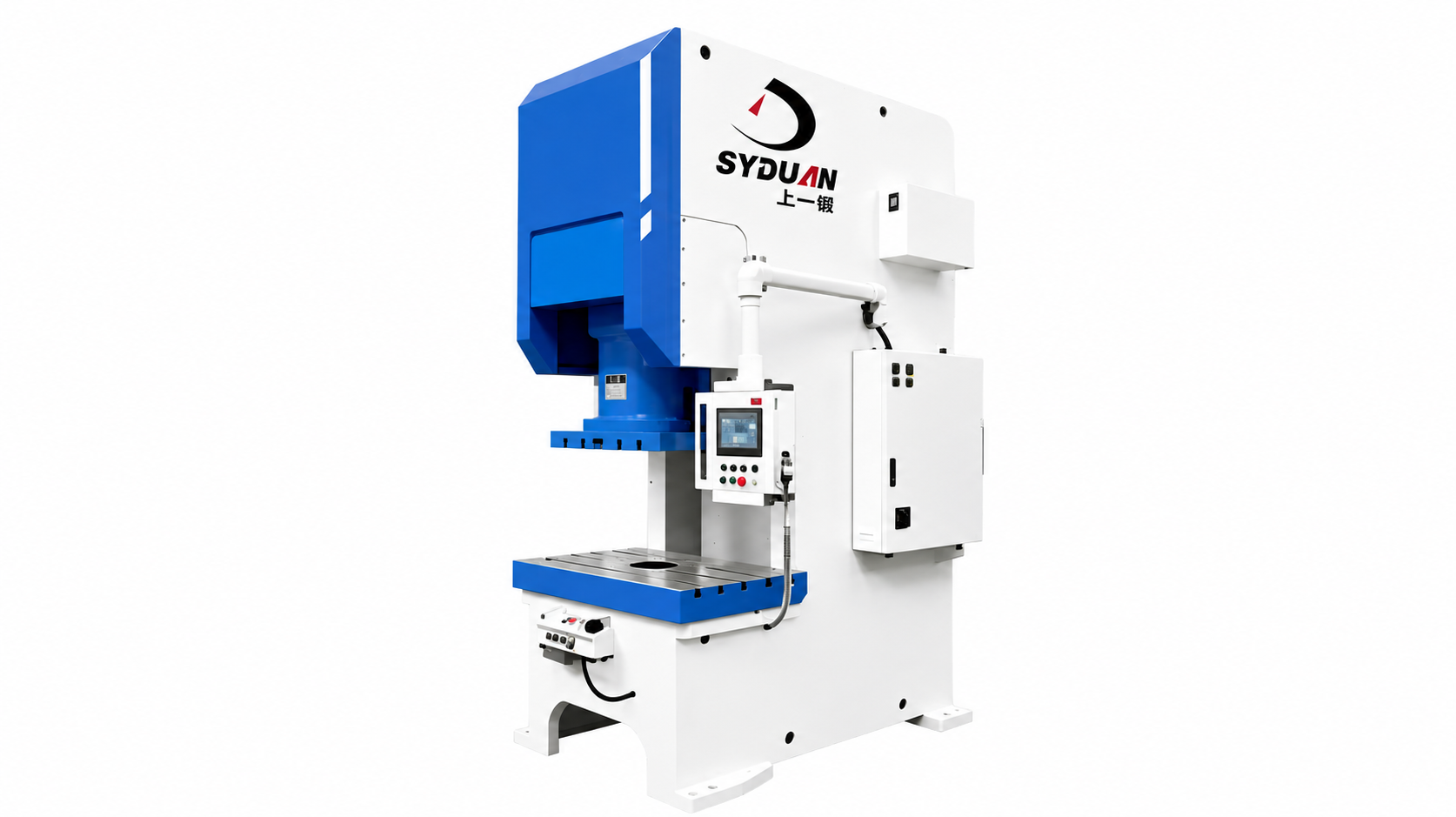

BLPA-45 Open Back Fixed Bed Pneumatic Punch Press Overview
Our BLPA-45 open back fixed bed press adopts mature pneumatic drive design, featuring reliable operation, multi-layer safety protection and wide application coverage. It can complete sheet metal blanking, punching, bending and forming processes, perfectly matching mass production needs of hardware, auto parts, electronic components and other industries, with easy operation and long service life.
Heavy-Duty Rigid Frame Structure & Optimized Working Table
This punch press is built with high-rigidity cast iron frame to minimize deformation during long-hour stamping work. The reinforced flat working table supports flexible mold installation and adjustment. Optimized transmission and positioning systems guarantee high machining precision and stable repetitive accuracy, greatly lowering maintenance cost for your workshop.
Intelligent Control System & Comprehensive Safety Protection
BLPA-45 pneumatic punch press is equipped with mature centralized electric control system, supporting single stroke, continuous operation and inching modes to match diverse stamping workflows. It adopts emergency stop button, safety light curtain, pneumatic safety valve and overload protection devices in full set. Multiple interlock mechanisms prevent misoperation, effectively reducing operational risks. Stable control components ensure long-term reliable running for factory batch production.
Wide Application for All Kinds of Metal Stamping Processing
BLPA series BLPA-45 punching machine fits sheet metal processing of carbon steel, stainless steel, aluminum, copper and other metal materials. It is widely used to produce auto hardware, electronic terminals, household hardware, kitchen accessories, fasteners and stamping accessories. Suitable for blanking, punching, embossing, bending and forming procedures, serving hardware factories, auto parts workshops, electronics manufacturers and more than 20 industries globally.
Manufacturing Process, Secure Packaging & Global Delivery Support
With 20+ years press manufacturing experience, we strictly control every production procedure of BLPA-45 punch press. Reinforced packaging prevents transport damage, and global multi-channel logistics support timely shipment. Complete after-sales service ensures reliable use of your punching equipment.
| Nominal Capacity | V:450 H:450 |
|---|---|
| Nominal Pressure Stroke | V:3.2 H:1.6 |
| Speed Changing | V:40-110 H:100-150 |
| Stable Speed | 75 |
| Strokes of Slide | V:80 H:50 |
| Max.Die Height | V:250 H:265 |
| Die Height Adjustment | 60 |
| Worktable Size (DWH) | 850×440×80 |
| Slide Bottom Size (FGH) | 400×300×60 |
| Throat depth | 225 |
| Distance between Column | 502 |
| Height of working face | 790 |
| Dia.Of Shank Hole | Ø38.1 |
| Main motorkW/P | (vs)5.5*4 |
| Die height adjuster | Manual |
| Air Pressure MPa | 0.55 |
| Presses Precision | 一級 GB (JIS) 1class |
| Presses weight Ton | 3.7 |
| Overall Dimensions (LWH) mm | 1600×950×2500 |
Our BLPA series open fixed table pneumatic punch press includes mainstream model BLPA-45, with tonnage ranging from 25T to 400T. Customization of stroke, worktable size and configuration is supported for personalized production needs.
