Three-Roll Mechanical Plate Rolling Machine
Mechanical Symmetrical 3-Roll Plate Rolling Machine
SYDUAN
Introduction to Mechanical Symmetrical Three-Roll Plate Rolling Machine
Compact mechanical bending equipment for stable metal sheet rolling forming

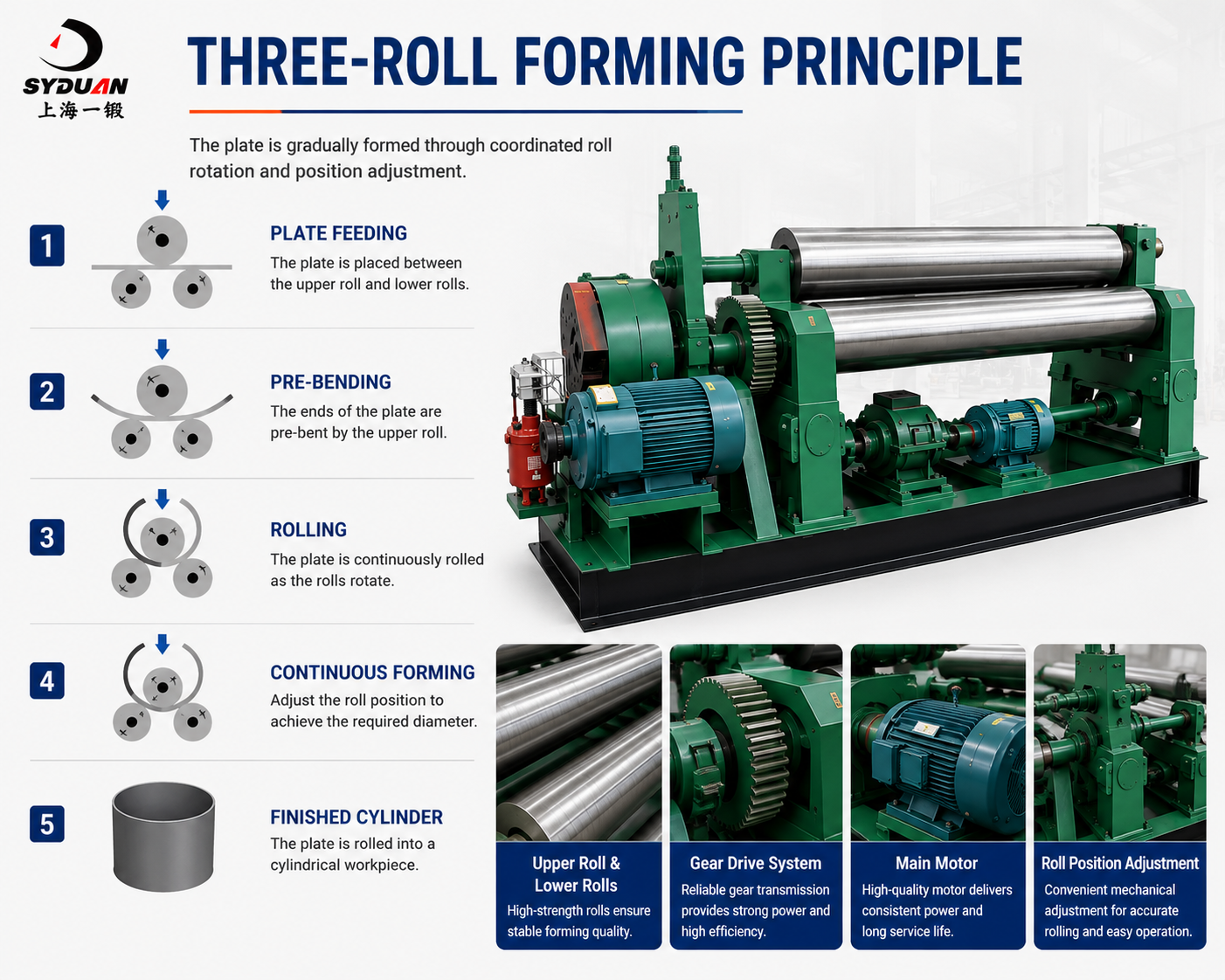

Three-Roll Plate Rolling Forming Principle
This diagram illustrates the complete metal forming workflow of the SYDUAN three-roll plate rolling machine. The whole rolling process is divided into five standardized steps: Plate Feeding: Flat metal sheet is sent between upper roller and two lower support rollers. Pre-Bending: The upper roller presses down to bend both ends of the plate to eliminate straight edge. Formal Rolling: Rollers rotate synchronously to bend the plate into uniform arc shape. Continuous Forming: Repeat rolling to adjust curvature until meeting dimensional requirements. Final Cylinder: The plate is rolled into closed cylindrical workpiece for subsequent welding. Supported by stable mechanical gear drive, the equipment realizes consistent bending precision. Clear process steps lower operation difficulty for new operators.
Three-Roll Rolling Machine Standard Configuration & Accessories
This SYDUAN mechanical three-roll plate rolling machine is equipped with standardized core parts and matched supporting components. The whole machine is fitted with heavy-duty driving motor, hardened steel rollers, precision gear transmission set, stable hydraulic auxiliary unit and safety protection components. All parts adopt strict procurement standards to guarantee long-time stable operation, lower wear rate and easy routine maintenance. Custom auxiliary fittings are available according to customers’ processing requirements
- Hardened solid metal rollers, wear-resistant and long service life
- Heavy-duty motor + precision gearbox, steady power transmission
- Pressure Vessel Manufacturing
- Pipeline & Pipe Fabrication
- Wind Power Equipment Production
- Shipbuilding & Marine Metal Processing
- Environmental Protection Dust Removal Equipment
- Metallurgical Mechanical Housing Processing
- Agricultural Machinery Metal Parts
- Fire Protection & Ventilation Duct Making
- Storage Tank & Silo Production
- Hardware Engineering & Metal Structure
This SYDUAN mechanical three-roll plate rolling machine focuses on refined structural design and stable mechanical performance. Every component undergoes precision processing and strict quality inspection to deliver consistent bending accuracy, high durability and convenient daily operation for metal sheet rolling work.
Built with elaborate craftsmanship, our three-roll rolling machine realizes reliable forming accuracy, strong wear resistance and easy operation to meet long-term metal processing demands.
- Core Advantages & Precise Manufacturing Features
- Key Performance Advantages of Three-Roll Rolling Machine
- Main Product Features
Numerical Control Axis Configuration of Three-Roll Rolling Machine
- Upper roller vertical lifting axis, adjusts pressing depth to control bending curvature
- Two lower rollers synchronous rotating axis, drives plate feeding and continuous rolling
- Manual/electrical position fine-tuning axis, realizes pre-bending and precise forming
CONTROLLING SYSTEM
This is the control center of the entire bending machine; all bending programs, axis control parameters, compensation data, and angle programming are set and executed here. Various well-known brands are available.
* The best way for YDP-ESS Series 2000 delivery is 20OTx1 and 20GPx1 because of over height.
| Name | Unit |
|---|---|
